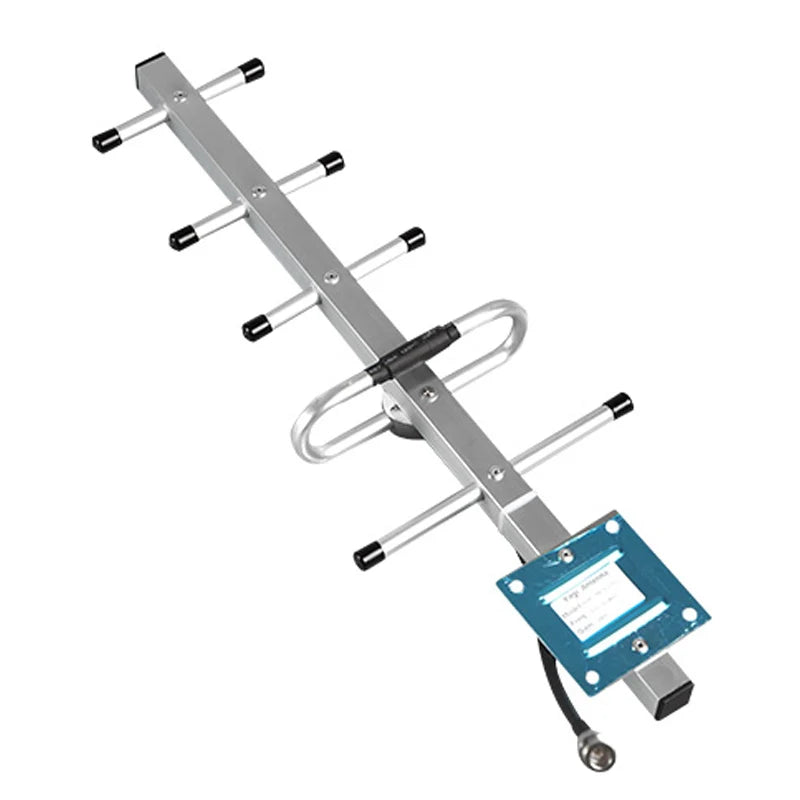

The ZQTMAX 13dBi YAGI 824-960 MHz antenna is a high-performance outdoor directional antenna designed specifically for amplifying GSM 900, E-GSM900 and LTE900 signals. This antenna has a gain of 13 dBi and a 9-element design that provides excellent directivity with a 17-degree vertical and 20-degree horizontal pattern. Made from anodised aluminium, it includes a 35-50mm pipe mount, making it ideal for outdoor mounting.
Resistance: 50 ohms
Cable length: 30 cm
Vertical directivity diagram: 17 degrees
Horizontal directivity diagram: 20 degrees
Gain: 13 dBi
Connector, type: N-Female
For standards: GSM 900, E-GSM900, LTE900
Type: YAGI, external, directional
Delivery set: antenna + mounting on a 35-50 mm pipe
