VCI SE2806.5 1350 KV

VCI SE2806.5 1350 KV

Regular price 0,00 Kč
Regular price Sale price 0,00 Kč
Sale Sold out
Taxes included.

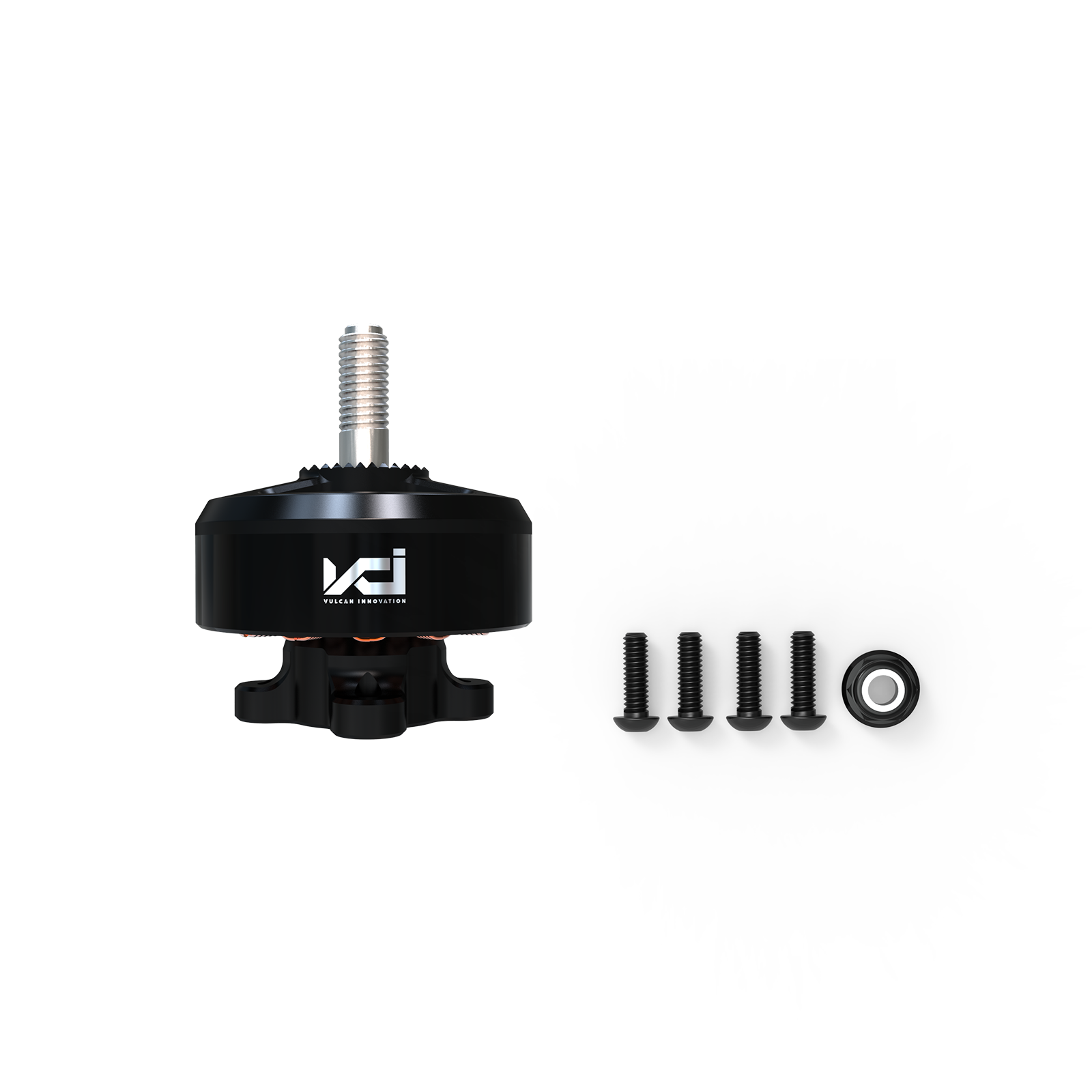

The VCI SE2806.5 1350 KV motor is designed specifically for FPV drones that require high power and efficiency. The motor is equipped with 12 stator slots and 14 rotor poles, has a peak current of 43.4A and a maximum instantaneous power of 1041.6 W. With a stator diameter of 28 mm and a height of 6.5 mm, the motor is optimally sized for powerful flight. It is recommended to use with 45 - 50 A ESU and 7-inch propellers.

  • KV: 1350
  • Peak current: 43.4 A
  • Internal resistance: 70 mΩ
  • Maximum instantaneous power: 1041.6 W
  • Stator diameter: 28 mm
  • Overall dimensions: 33.4*39.2 mm
  • Stator height: 6.5 mm
  • Shaft diameter: M5×L14.6 mm
  • Number of stator slots: 12
  • Wire specification: 18AWG×300mm
  • Number of rotor poles: 14
  • Recommended ESU: 45-50A
  • Dynamic balance: ≤10 mg
  • Rated voltage: 6S (24V)
  • Current without load (at 10V): 1.00 A
  • Recommended propellers: 7 inches
