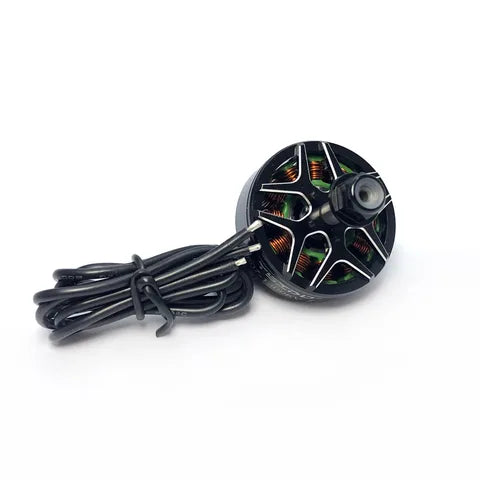

VCI A2808 1200 KV

The VCI A2808 1200 KV motor is a high-performance FPV drone motor designed to efficiently operate 7-inch propellers. It is recommended to use with ESC with a capacity of 45 - 50 A.

• KV: 1200
• Peak current: 35.49 A
• Internal resistance: 62 mΩ
• Maximum instantaneous power: 851.83 W
• Stator diameter: 28 mm
• Overall dimensions: 33.4*40.7 mm
• Stator height: 8 mm
• Shaft diameter: M5×L14.6 mm
• Number of stator slots: 12
• Lead wire size: 18AWG×300mm
• Number of rotor poles: 14
• ECU: 45-50A
• Dynamic balance: ≤10 mg
• Nominal voltage: 6S(24V)
• Common propeller: 7 inches
