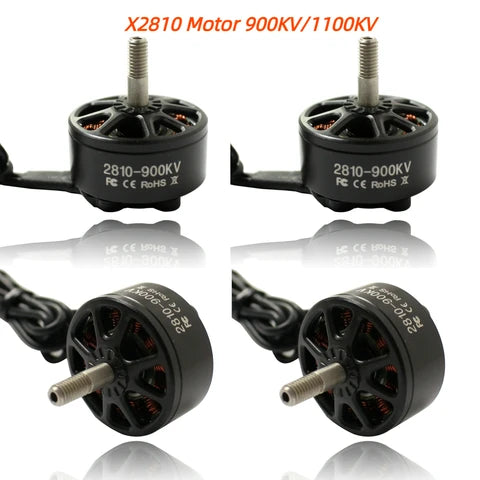

TOP MOTOR 2810 1100KV

TOP MOTOR 2810 1100KV

Regular price 0,00 Kč
Regular price Sale price 0,00 Kč
Sale Sold out
Taxes included.

The TOP MOTOR 2810 1100KV motor is designed for FPV drones and aircraft that require reliability and high performance. With a KV of 1100 and a maximum thrust of up to 2597g, this motor is ideal for use with the recommended GF7040-3 and HQ8045-3 propellers. Provides high performance at a nominal voltage of 22.2 V and a peak current of 48.59 A.

  • KV: 1100
  • Maximum thrust: 2033 — 2597 g
  • Power supply: 22.2 V
  • Nominal current: 10.65 A
  • Peak current: 48.59 A
  • Max. extended power: 1176 W
  • Shaft diameter: 5 mm
  • Resistance: 61 mΩ
  • Configuration: 12N14P
  • Number of poles: 14
  • Wire length: 250 mm
  • Motor mounting: 19x19 mm
  • Direction of rotation: CW; CCW
  • Recommended propellers: GF7040-3; HQ8045-3
  • Dimensions: 33.4x33.4x38.05 mm
  • Weight: 58 g
