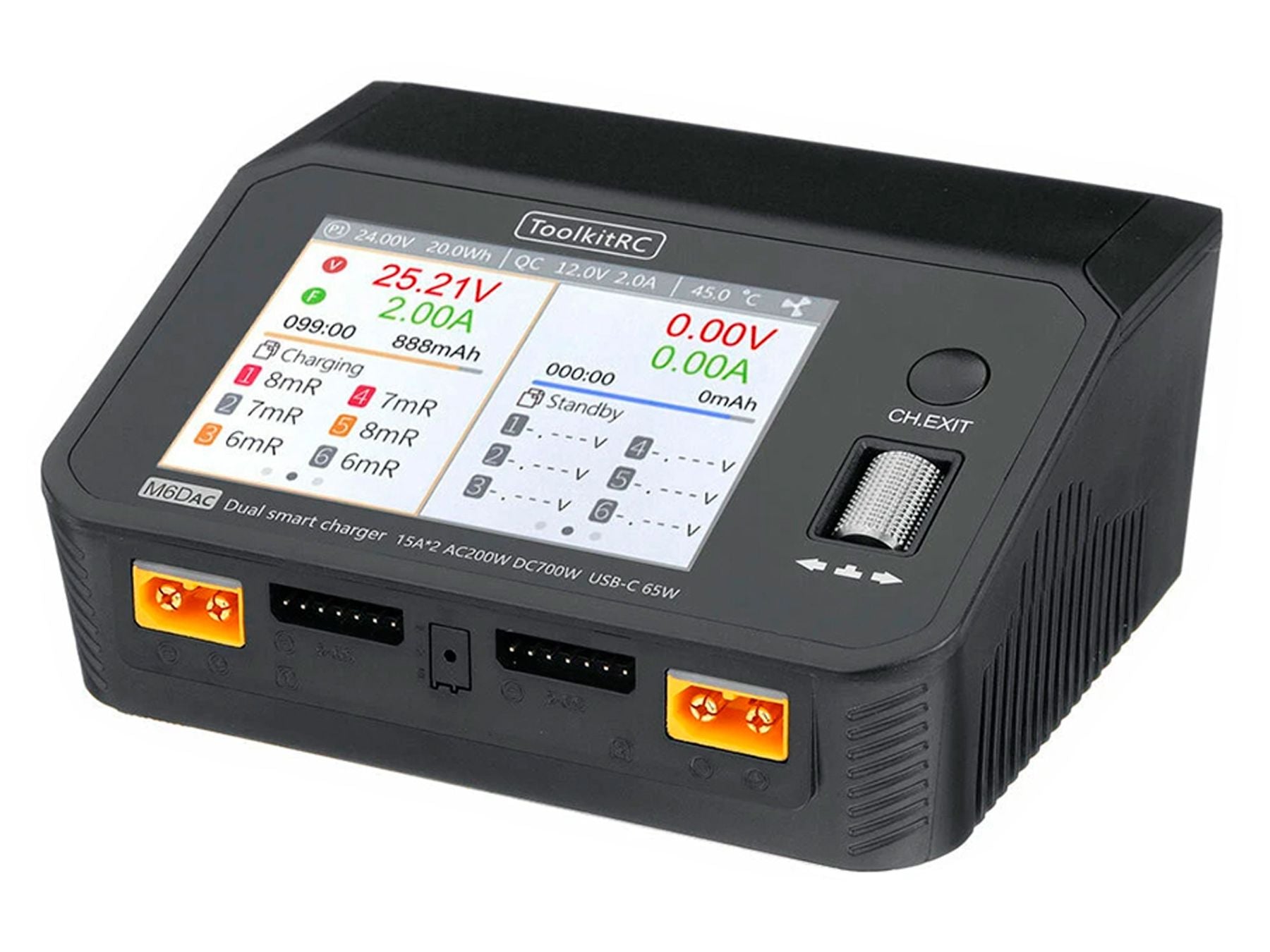

TOOLKITRC M6DAC charger

The TOOLKITRC M6DAC is a high-power universal charger for a variety of battery types including Lipo, LiHV, LiFe, Lion, NiMh and Pb. With the ability to charge up to 25 A in synchronous mode and a power output of up to 700 W, this device provides fast and efficient charging.
Includes an integrated IPS 3.5-inch display for convenient monitoring of charging parameters and built-in USBC support with PD, QC and more, making it extremely versatile.

• Input voltage: DC 7.0-28.0 V at max. 30A; AC 100-240 V at max. 2.5 A
• Battery type: Lipo, LiHV, LiFe, Lion@1-6S; NiMh @1-16S; Pb @1-10S
• Current Balance: 1000mA @ 2-6S
• Accuracy: <0.005V
• Charger capacity: 0.1-15 A at 350 W *2 (asynchronous mode); 0.1-25 A at 700 W (synchronous mode)
• Discharge power: 350 W at max. 15 A*2 (reuse mode); 15 W at 3 A*2 (normal mode)
• USBC power: MAX. 65W 3.25A at 20.0V or more
• USBC protocol: PD, QC, AFC, FCP, SCP, PE, SFCP, VOC
• Battery voltage: 1.0-5.0V at 1-6S
• Internal resistance: 1-100mR at 1-6S
• LCD display: IPS 3.5-inch LCD display 480x320 pixels
• Device size: 127*106*57 mm
• Weight of the device: 520 g
