TINYSA ULTRA spectrum analyzer

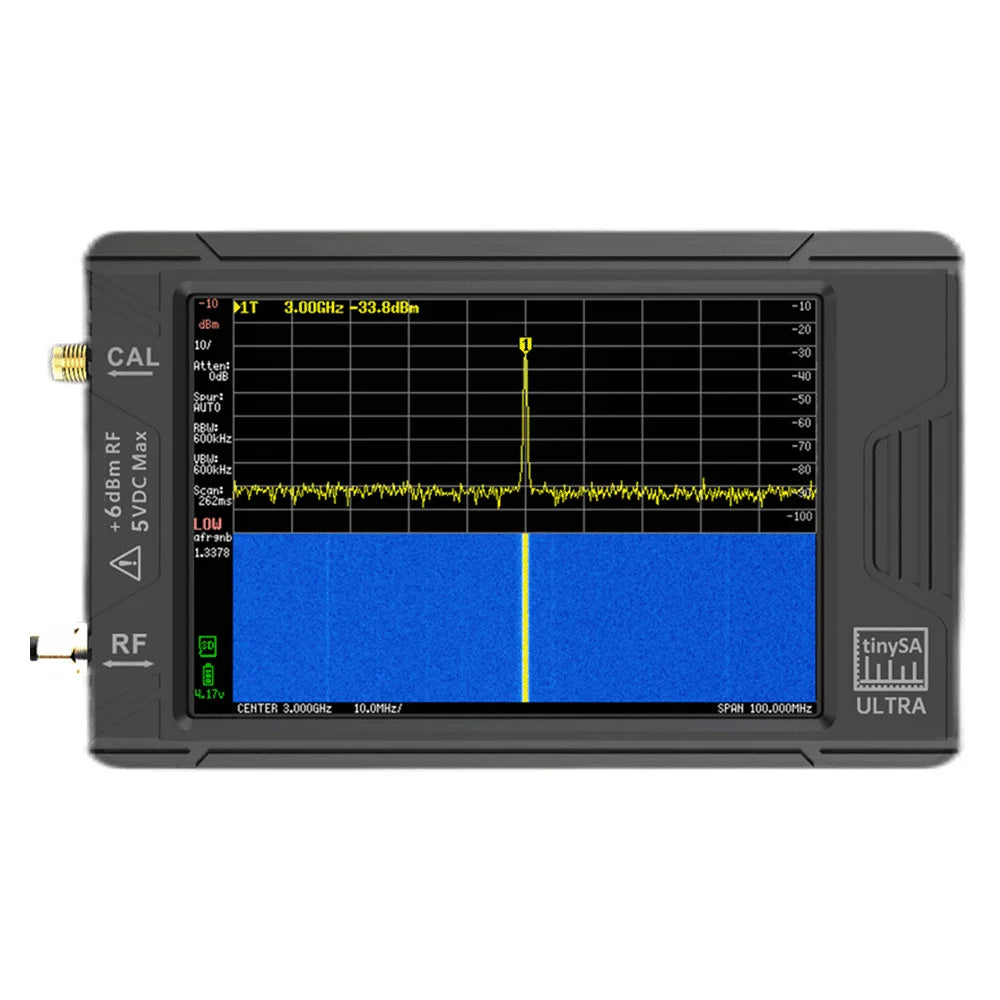

The tinySA Ultra portable spectrum analyzer features a 4.0-inch resistive touch color display that displays the full frequency range at 450 scan points, and includes a rechargeable battery that provides up to two hours of portable operation. In addition, the analyzer has two different modes: normal mode and ultra mode. The TinySA Ultra has many built-in tuning options, such as a switchable bandpass filter and a stepped input attenuator. It is important to remember that the maximum input level of the tinySA is +6 dBm. If you are unsure of the input signal level, it is recommended to use an attenuator.
When the tinySA Ultra is not being used as a spectrum analyzer, it can also be used as a sine wave or square wave generator.
The analyzer can be fully controlled from a PC via a USB cable. It also features automatic self-diagnosis and auto-calibration using a built-in signal generator.

• Frequency range of the analyzer: from 100 kHz to 800 MHz (in normal mode); from 100 kHz to 6 GHz (in Ultra mode)
• Input impedance: 50 ohms (with input attenuator > 10 dB)
• Compression point at 1 dB: -1 dBm (at 0 dB internal attenuator)
• Phase noise: -90 dB/Hz for 100 kHz offset and -120 dB/Hz for 1 MHz offset
• Input Attenuator: Manual or automatic, switchable from 0dB to 31dB in 1dB steps (with LNA off)
• Maximum permissible input signal level: +6 dBm at 0 dB input attenuator
• The maximum permissible short-term peak level of short input signals: +20 dBm, with an input attenuator of 30 dB
• Recommended input signal level in automatic input attenuator mode: +0 dBm
• Maximum input voltage: ±5 V DC
  Dynamic range: 70 dB (no spurious harmonics at RBW 30 kHz)
• Power measurement resolution: 0.5 dB
• Frequency uniformity: ±2 dB to 5.3 GHz, ±5 dB from 5.3 GHz to 6 GHz
• Absolute power level measurement error: ± 2 dB (after calibration)
• Intersection point of the third-order modulation products (IIP3) at the input: +15 dBm, with an internal attenuator of 0 dB
• Bandwidth of resolution filters: 0.2, 1, 3, 10, 30, 100, 300, 600 and 850 kHz
• Scanning speed: over 1000 pixels/sec, when using filters with the largest bandwidth
• Resolution: 51, 101, 145, 290 or 450 measurement points
• Function: suppression of spurious interference to differentiate between marks from internally generated harmonics and the real input signal
• Built-in LNA: by 20 dB and a noise factor of 5 dB
• Kit:
  1 x SMA antenna
  1 x SMA male to female adapter
  2 x ALSR100 30cm cable with SMA connectors
  1 x USB-C cable
  1 x 32GB MicroSD card
