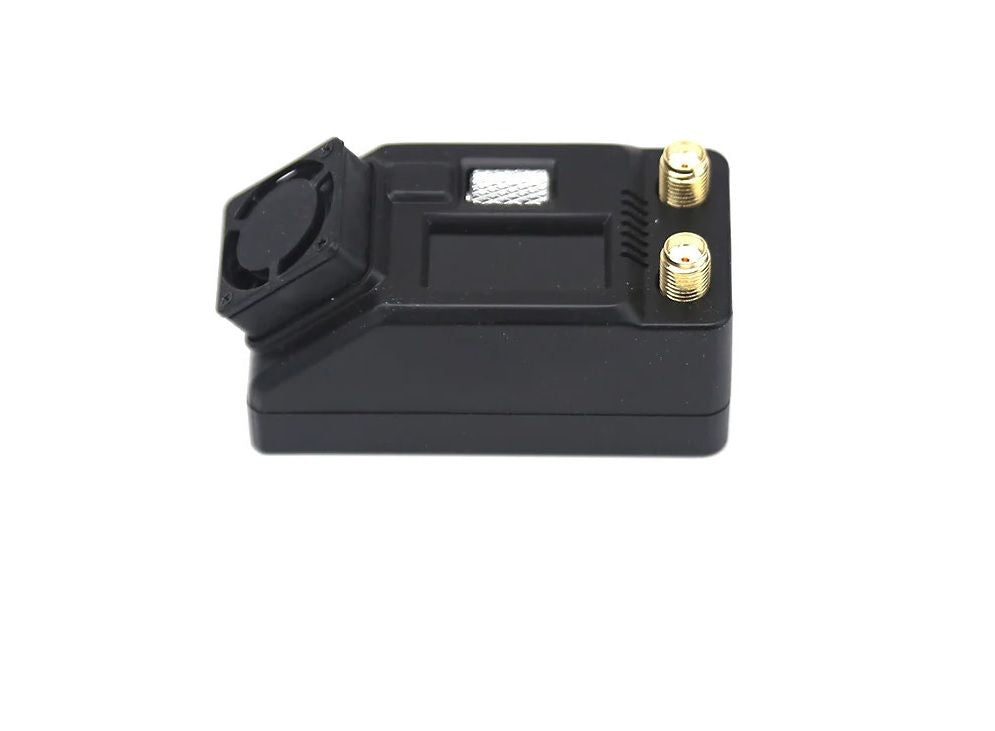

The SKYZONE SteadyView X 4.9Ghz IPS video receiver is a high-tech device for receiving video signals from drones. It is equipped with a 0.96-inch color LCD display and supports a frequency of 4.9 GHz, which ensures high-quality video reception even at long distances. The device is powered from 6.5 to 26 V, ensuring efficient operation in various conditions.
Dimensions: 65*32:32 mm
Weight: 49 g
Display: 0.96 inch, color LCD
Frequency: 4.9 GHz
Sensitivity: -98 dBm ± 1 dBm
Narrow bandpass filter: present
Connectors: 2x standard SMA-K
Modes: Mix1, Mix2, Mix3, Diversity, Single RX
Video output: 1.0Vp-p Typ. / 75 ohms
Audio output: None
Power supply: voltage 6.5-26 V, power consumption: 12 V * 240 mA in normal mode, 180 mA in Single RX mode
Interface: DC input: 5.5mm * 2.1mm, A/V output: 3.5mm, USB-C for firmware update
