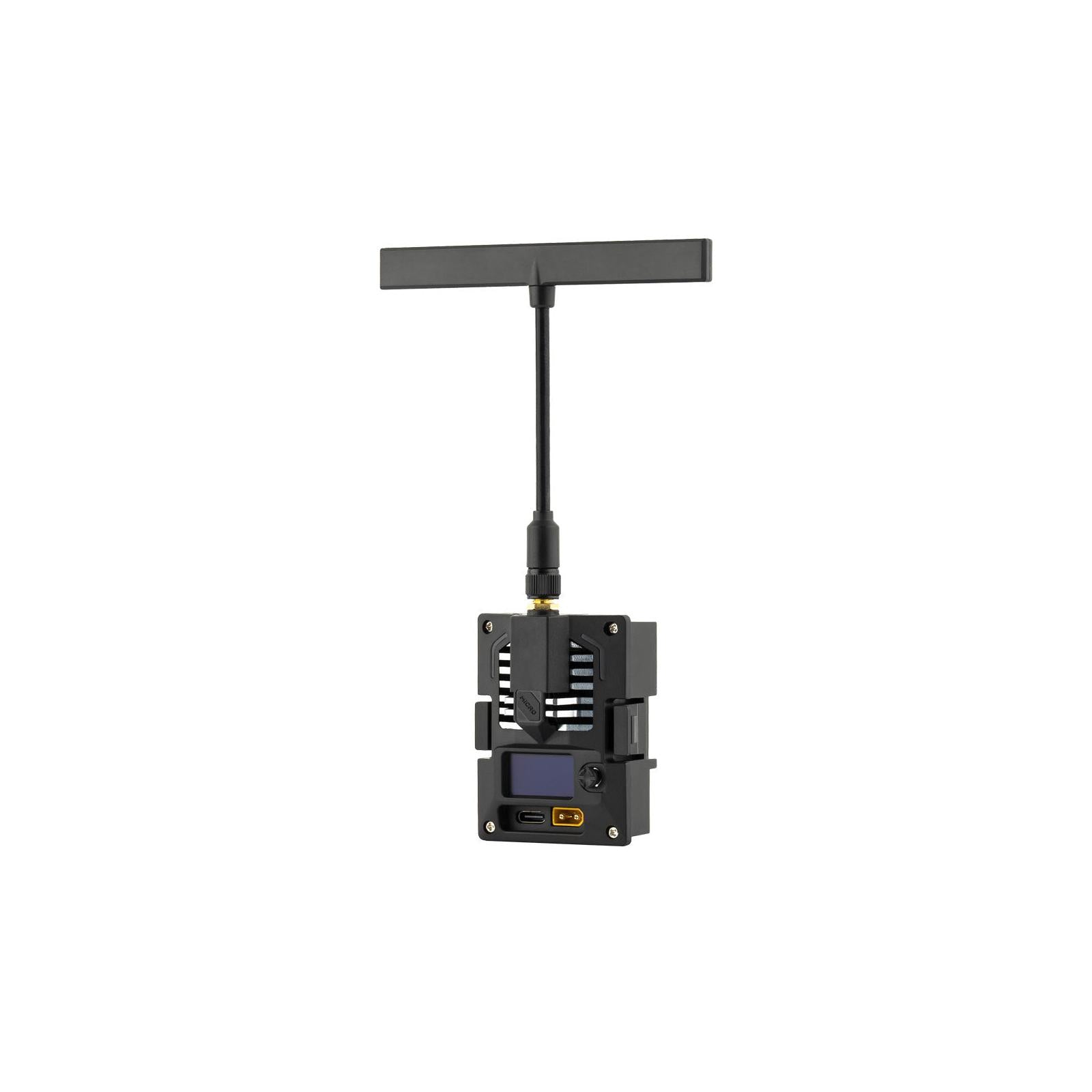

The RF Bandit ExpressLRS module is an advanced RF module with a power output of up to 1 Watt and a packet frequency of up to 200Hz. Equipped with a built-in TCXO oscillator, this module guarantees signal stability and accuracy. An elegant case made of hardened metal, a high-contrast OLED display, support for Wi-Fi and Bluetooth, as well as RGB lighting effects make it not only powerful, but also a stylish device for FPV and remote communication enthusiasts.
Regulatory domain: FCC915
Microcontrollers (MCU): ESP32 (main), ESP8285 (auxiliary as ESP backpack)
RF chip: SEMTECH SX1276
Minimum/Maximum refresh rate: 25Hz/200Hz
RF output power: 1000mW/30dBm
Module bay adapters: standard micro 5-pin connector and standard nano 8-pin connector
