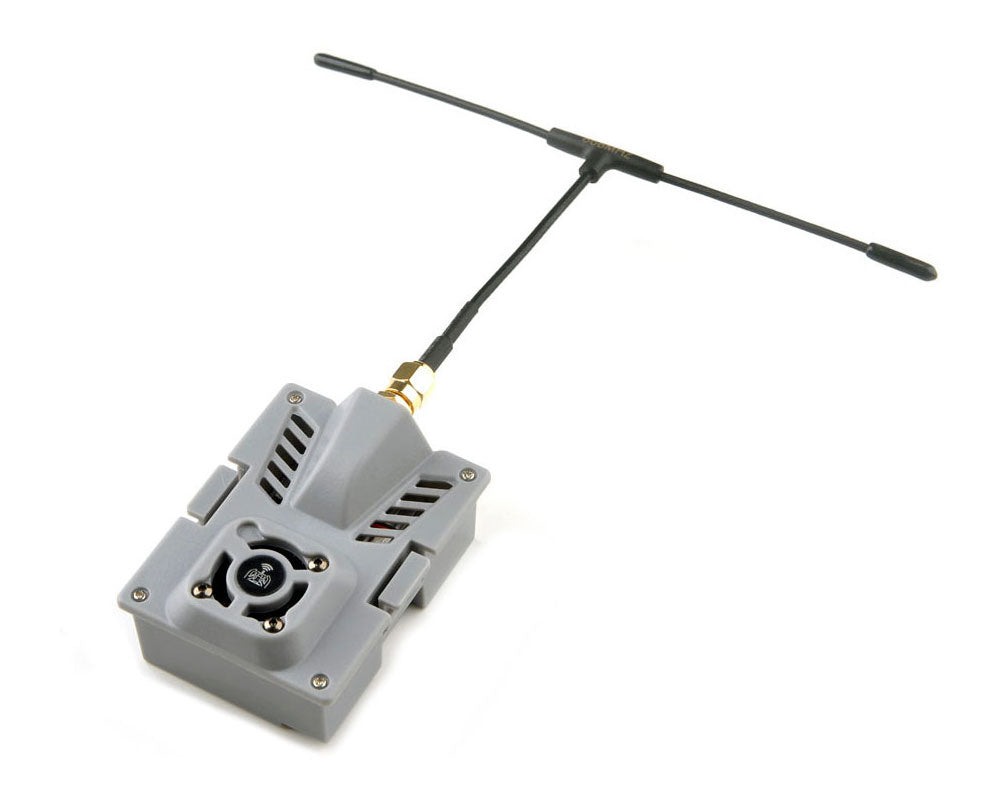

HAPPYMODEL ELRS ES900TX V2 915MHz 2W

The Happymodel ExpressLRS ES900TX 915MHz 2W transmitter is a long-range module for long-distance FPV drones with a frequency of 915MHz.

• Antenna connector: SMA jack
• Size: 55*39*11 mm (including radiator)
• Weight: 23 g (without antenna)
• RF frequency: 915MHz
• Maximum output power: < 33dBm
• VCC input: 5~13V, 5~9V is recommended
• Processor: ESP32 + ESP8285
• RF chip: SX1276IMLTRT
