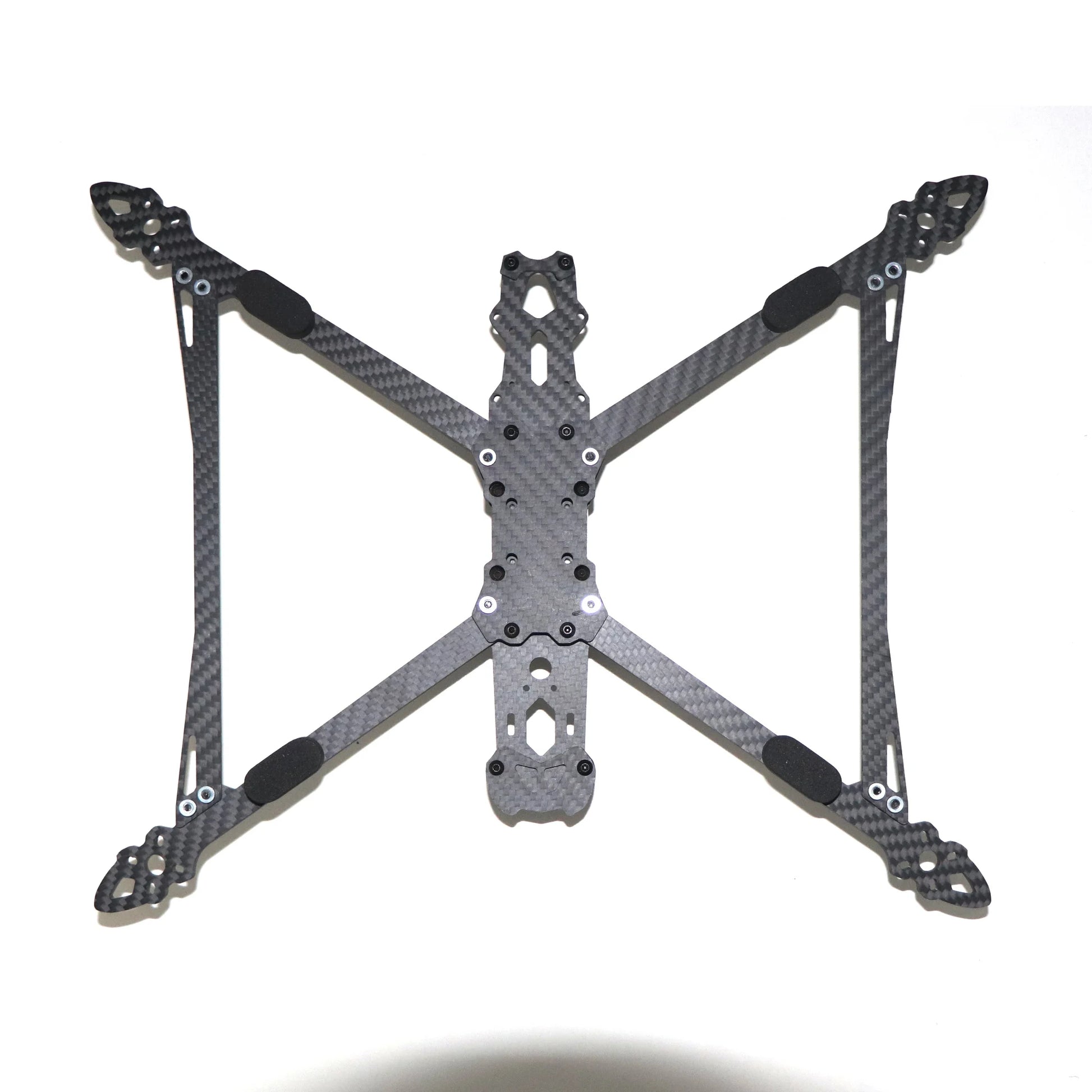

GEPRC Mark4 V2 Mark 4 8inch 367mm is a frame for FPV quadcopter, designed for freestyle and long-distance flying. It is made from high-yield 3K carbon fiber and has a number of features that make it a wonderful choice for finishing pilots.
Frame structure: X-type
Wheel base: 367 mm
Size: 230.35mm * 278.52mm
Thickness of the bottom plate: 3.0 mm
Thickness of the middle plate: 3.0 mm
Thickness of the upper plate: 2.0 mm
Lever thickness: 6.0 mm
Connecting plate: 2.0 mm
The thickness of the side panel of the camera: 2.5 mm
The distance between the holes for installing the camera: 19 mm
The distance between the holes for installing image transfer: 20 x 20 mm and 30.5 x 30.5 mm
Distance between holes for installation of flight controls: 20 x 20 mm and 30.5 x 30.5 mm
Height of internal space: 35 mm
Position of the motor mounting hole: 16 x 16 mm and 19 x 19 mm
