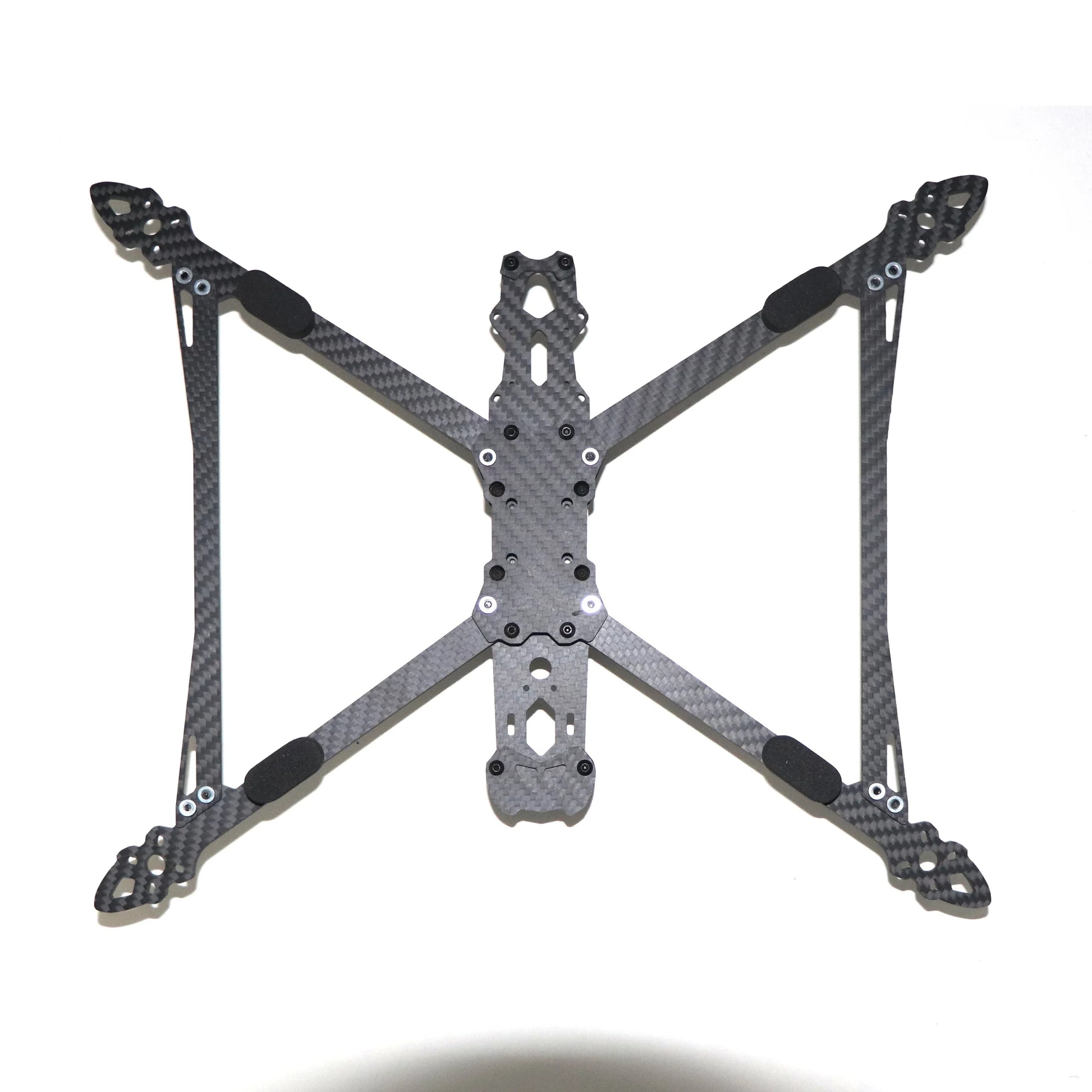

GEPRC Mark4 V2 7inch 295mm is an FPV quadcopter frame designed for freestyle and long distance flying. It is made of high-quality 3K carbon fiber and has a number of features that make it an excellent choice for experienced pilots.
Structure of the frame: X-type
Wheelbase: 295 mm
Size: 230.35 mm * 278.52 mm
Thickness of the bottom plate: 3.0 mm
Thickness of the middle plate: 3.0 mm
Thickness of the top plate: 2.0 mm
Thickness of the arm: 6.0 mm
Connecting plate: 2.0 mm
Thickness of the camera side panel: 2.5 mm
Distance between camera mounting holes: 19 mm
Distance between image transmission mounting holes: 2020 mm and 30.530.5 mm
Distance between flight control mounting holes: 2020 mm and 30.530.5 mm
