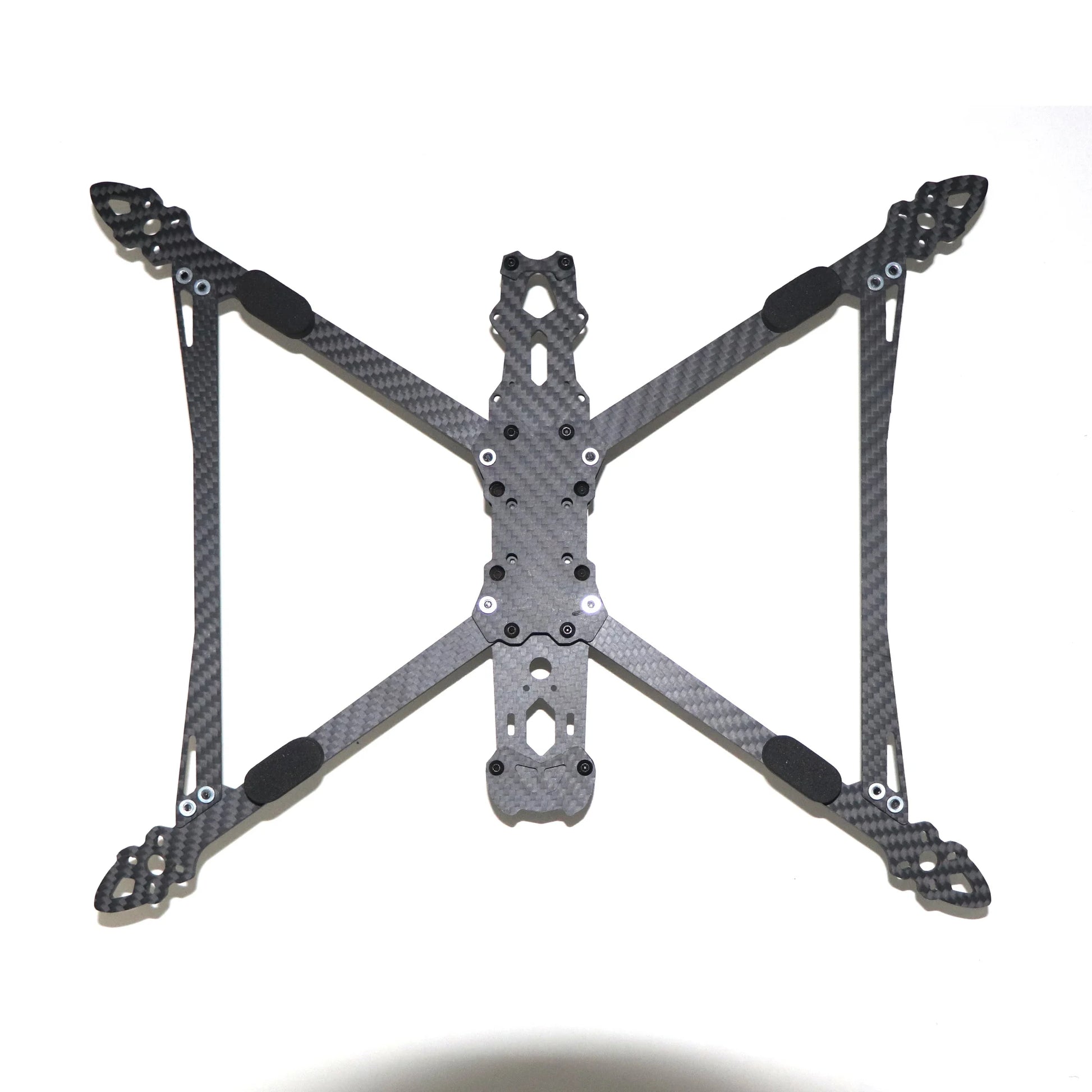

GEPRC Mark4 V2 10inch 427mm is an FPV quadcopter frame designed for freestyle and long distance flying. It is made of high-quality 3K carbon fiber and has a number of features that make it an excellent choice for experienced pilots.
Frame structure: X-type
Wheel base: 427 mm
Size: 268.18mm * 332.07mm
Thickness of the bottom plate: 3.0 mm
Thickness of the middle plate: 3.0 mm
Thickness of the upper plate: 2.0 mm
Lever thickness: 7.5 mm
Connecting plate: 2.0 mm
The thickness of the side panel of the camera: 2.5 mm
The distance between the holes for installing the camera: 19 mm
The distance between the holes for installing image transmission: 20*20 mm and 30.5*30.5 mm
Distance between holes for installation of flight control: 20*20 mm and 30.5*30.5 mm
Height of internal space: 35 mm
Position of the motor mounting hole: 16*16 mm and 19*19 mm
